Recently, I had been involved in an implementation-heavy project where we had to design the architecture for a few components. It is my first project of this scale and we had quite the hard deadlines. We ended up using not so elegant solutions to get things done quickly. This did not satisfy me and I knew there should be better ways of doing things. Hence, I started researching for solutions and came across the concept of Type Erasure in C++. Klaus Iglberger has a great talk on this topic. I would like to share my understanding of Type Erasure through this blog post.

The Problem⌗

I will be using the very classic problem for these kinds of issues - the Shape problem (How original of me!). We have different shapes like Circle, Square, Triangle etc. Each shape has its own draw() method. We want to create a system where we can store different shapes in a single container and call their draw() methods without knowing their concrete types at compile time. Also, we want the system to have opportunities for future extensions. This is a classic case of polymorphism. The traditional way to achieve this in C++ is through inheritance and virtual functions. However, this approach has its limitations.

  1. It requires all shapes to inherit from a common base class, which can lead to a rigid class hierarchy.
  2. Suppose currently we are only relying on some graphic library like OpenGL for “drawing” the shapes but in future we might want to add support for another library like vulkan. In that case, our design fails spectacularly!

Naive Approach: Inheritance and Virtual Functions⌗

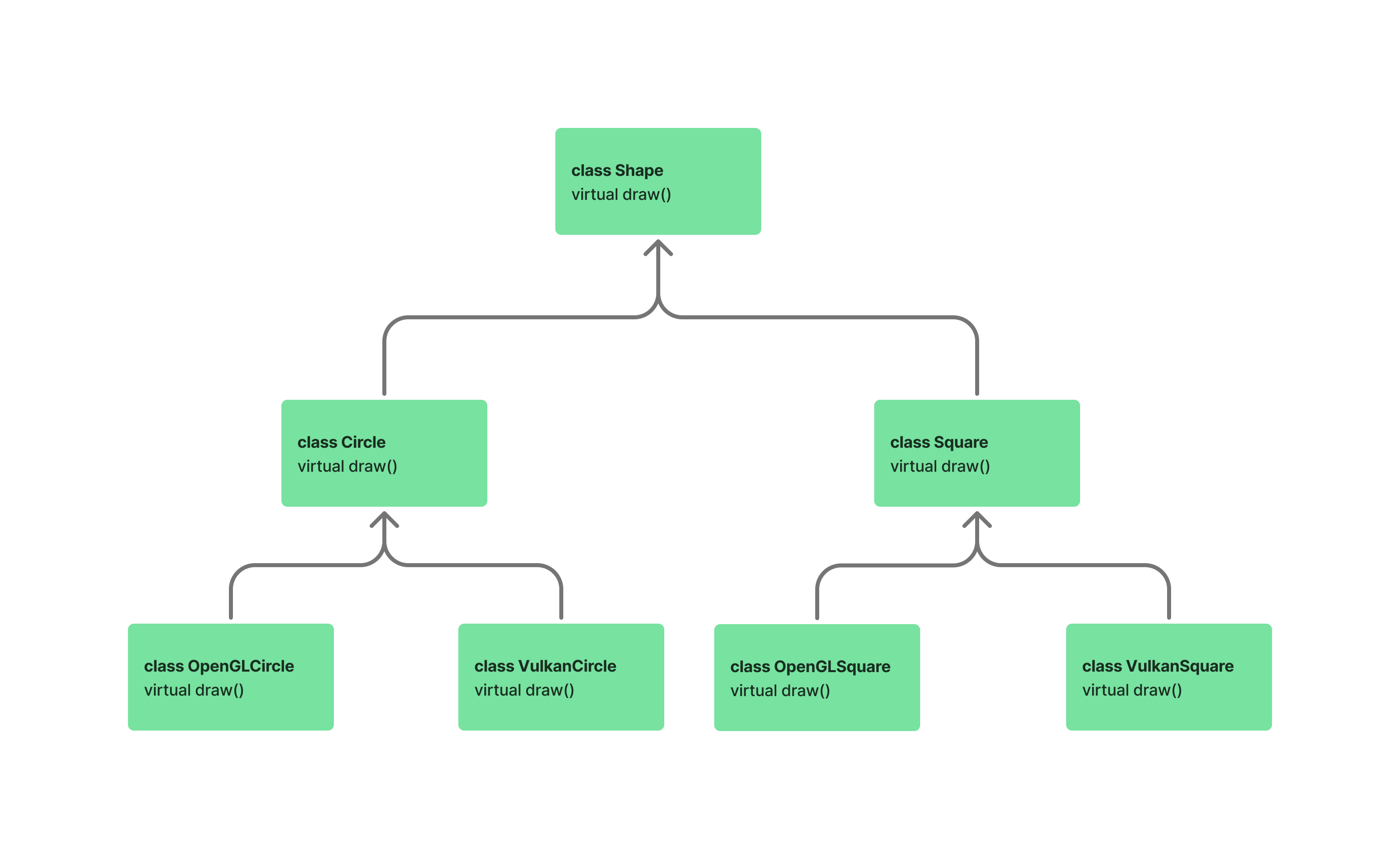

To solve this issue, let’s create explicit derived classes for each shape and library we draw with. For example: sol1 As you can see, there are basically 3 levels of hierarchy here. The base class Shape has derived classes for each shape type like Circle, Square etc. Each of these derived classes has further derived classes for each graphics library like OpenGLCircle, VulkanCircle etc.

Now, this might actually work but as time passes, software changes and so does requirements. Now, suppose we need another functionality on shapes like serialize(). How can we add this functionality to our existing design?

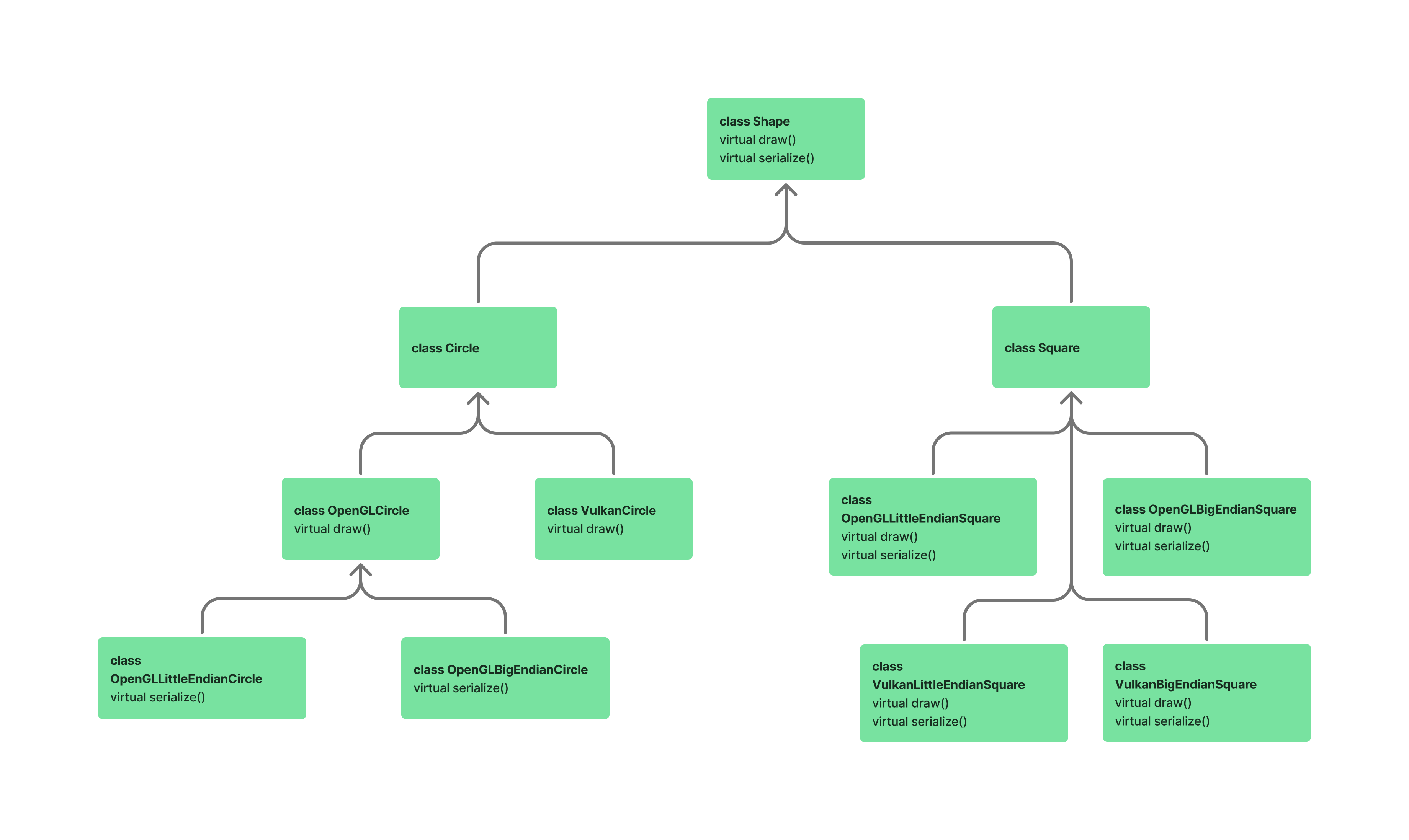

Well, the only way is to extend the hierarchy further down and adding more derived classes as for Circle in the figure below: sol1-failure

Issues:

  1. As we add on more functionalities, the class hierarchy becomes deeper and more complex.
  2. As we add more functionalities, the names of the classes become more and more ridiculous and complex.

What if we just make the derived classes like OpenGLLittleEndianCircle, etc. directly from special shape like in the Square example above? This would reduce the depth of the hierarchy but would lead to a combinatorial explosion of classes as we add more shapes and libraries and still the naming would very complex!

To conclude, with this approach, we are still stuck with the following issues:

  1. A lot of derived classes!
  2. Ridiculous class names!
  3. Deep class hierarchies!
  4. Duplication between similar implementations!
  5. (almost) Impossibility of adding new functionalities without modifying existing code!
  6. Impeded code readability and maintainability!

At this point, the problem is no longer “too many classes”. It is that adding a new operation requires modifying all existing abstractions. That is the moment where inheritance stops being a tool and starts being friction.

Classic Solution: Design Patterns⌗

Inheritance is rarely the answer.
Has-a trumps Is-a.

— Andrew Hunt & David Thomas,
The Pragmatic Programmer

Now, some of the readers may not be familiar with the term “design patterns”. Design patterns are typical solutions to common problems in software design.

A design pattern:

  • has a name
  • carries an intent
  • aims at reducing dependencies
  • provides some sort of abstraction
  • has proven to work over the years

One of the best books to learn these is Design Patterns: Elements of Reusable Object-Oriented Software by the “Gang of Four”. The book describes design patterns using Object-Oriented Programming but the concepts can be applied to other programming paradigms as well.

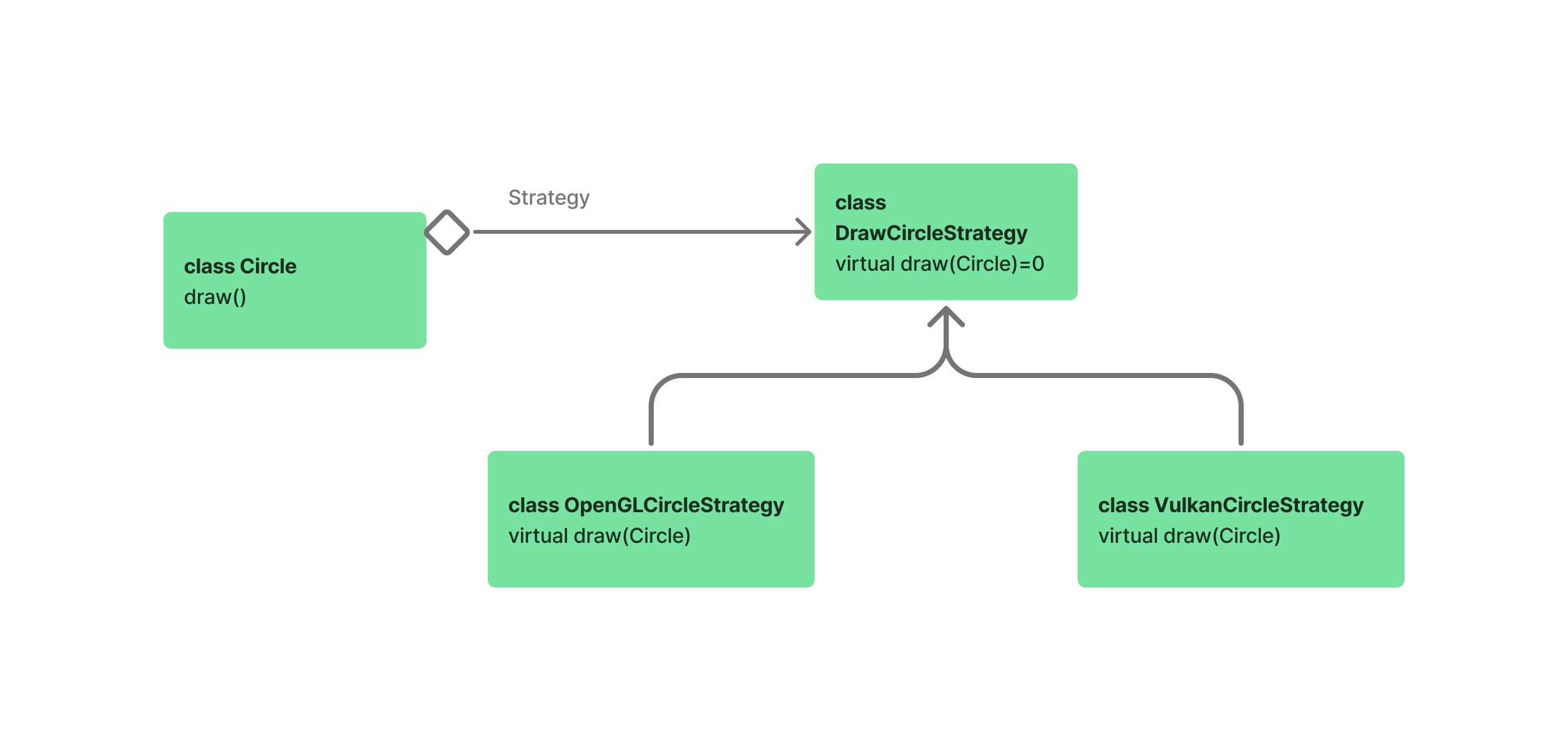

Back to our problem, for solving our issue, the design pattern that fits best is the Strategy Pattern. This pattern suggests selecting an algorithm polymorphically instead of hardcoding it. What we are trying to do is provide an interface for a method and ask the user to provide the strategy to use. It’s basically equivalent to saying “I will do the work but you need to tell me how to do it”. Let’s see how we can apply this pattern to our problem: classic-strat Here, for the Circle class, we have an interface DrawCircleStrategy and there are concrete implementations of this interface for each graphics library like OpenGLDrawCircleStrategy, VulkanDrawCircleStrategy etc. Same goes for other shapes as well. The rough implementation would look something like this:

class DrawCircleStrategy;
class Circle: public Shape {
private:
    std::unique_ptr<DrawCircleStrategy> drawStrategy;
    double radius;
public:
    Circle(double r, std::unique_ptr<DrawCircleStrategy> ds) : radius(r), drawStrategy(std::move(ds)) {}
    void draw() {
        drawStrategy->draw(*this);
    }
    double getRadius() const { return radius;}
};
class DrawCircleStrategy {
public:
    virtual void draw(Circle const&) = 0;
    virtual ~DrawStrategy() = default;
};
class OpenGLCircleStrategy : public DrawCircleStrategy {
public:
    void draw(Circle const& c) override {
        // OpenGL specific drawing code for Circle
    }
};
class VulkanCircleStrategy : public DrawCircleStrategy {
public:
    void draw(Circle const& c) override {
        // Vulkan specific drawing code for Circle
    }
};
// Do the same for Square
class DrawSquareStrategy;
class Square: public Shape {
private:
    std::unique_ptr<DrawSquareStrategy> drawStrategy;
    double side;
public:
    Square(double s, std::unique_ptr<DrawSquareStrategy> ds) : side(s), drawStrategy(std::move(ds)) {}
    void draw() {
        drawStrategy->draw(*this);
    }
    double getSide() const { return side;}
};
class DrawSquareStrategy {
public:
    virtual void draw(Square const&) = 0;
    virtual ~DrawSquareStrategy() = default;
};
class OpenGLSquareStrategy : public DrawSquareStrategy {
public:
    void draw(Square const& s) override {
        // OpenGL specific drawing code for Square
    }
};
class VulkanSquareStrategy : public DrawSquareStrategy {
public:
    void draw(Square const& s) override {
        // Vulkan specific drawing code for Square
    }
};

Now, you may wonder why we are being so explicit about the strategies here. Why use DrawCircleStrategy instead of just having a DrawStrategy with function overloading for each Shape? The base reason is you would just be undoing all the benefits of this design pattern. We are trying to break dependencies but due to this generic base class, we are once again coupling different strategies of different shapes together. With generic DrawStrategy, the Circle class would store strategy for Square and Triangle as well which is very undesirable.

Strategy Pattern beyond OOP⌗

So, yeah! This solution actually works! In fact, this design pattern is much more prominent in the standard library itself than you might think. Also, this design pattern as stated before is not just limited to Object-Oriented Programming. Here are a few examples of this pattern in the standard library:

  1. std::sort(nums.begin(), nums.end(), comparator); - Here, the comparator is a strategy that defines how to compare two elements.
  2. std::accumulate(nums.begin(), nums.end(), 0, binary_op); - Here, the binary_op is a strategy that defines how to accumulate the elements.
  3. template<class T, class Alloc> class vector; - Here, the Alloc is a strategy that defines how to allocate memory for the vector.
  4. template<class T, class Compare> class set; - Here, the Compare is a strategy that defines how to compare the elements in the set.
  5. template<class Key, class T, class Hash, class KeyEqual> class unordered_map; - Here, the Hash and KeyEqual are strategies that define how to hash the keys and compare the keys for equality respectively.
  6. template<class T, class Deleter> class unique_ptr; - Here, the Deleter is a strategy that defines how to delete the managed object.

Thus, we can see that the Strategy Pattern is widely used in the standard library itself. It is a powerful design pattern that can help us achieve polymorphism without the drawbacks of inheritance and virtual functions. Notice how std::vector and std::sort don’t force the user to use pointers. The Comparator and Allocator are passed by value.

Are we done?⌗

Great! We have successfully designed a system that can store different shapes in a single container and call their draw() methods without knowing the implementation details, created opportunities for easy extension of functionalities without increasing the depth of class hierarchies and avoided code duplication. However, this design is still not perfect.

  • The Strategy Pattern decoupled our logic, but it also forced us into this “Pointer World”. As shown in the example snippet below, we have to manually manage lifetimes using std::unique_ptr. We have to deal with manual tiny allocations and consider ownership semantics.
int main() {
    std::vector<std::unique_ptr<Shape>> shapes;
    shapes.push_back(std::make_unique<Circle>(5.0, std::make_unique<OpenGLCircleStrategy>()));
    shapes.push_back(std::make_unique<Square>(4.0, std::make_unique<VulkanSquareStrategy>()));
    for (const auto& shape : shapes) {
        shape->draw();
    }
    return 0;
}
  • We also have double the indirections here - one for the shape and another for the strategy. This leads to performance overhead. Not good!
  • Also, for each new functionality, we need to create a new base class for the strategy. This can lead to a proliferation of base classes which can be hard to manage.
  • Notice how difficult it is to create a copy of an existing shape like Circle. You need to copy not only the phyiscal attributes like radius but also the strategy which are stored as unique_ptr. This can lead to a lot of boilerplate code and complexity. What we want from our shapes is to behave like value types, for example int- easy to copy, easy to move, easy to store- but still have polymorphic behavior! Thus, our solution is far from perfect.

What we actually want from our solution is the ability to extend along 3 axes independently:

  1. Adding new shapes like Triangle, Rectangle etc.
  2. Adding new functionalities like serialize(), transform() etc.
  3. Adding new implementations for existing functionalities like OpenGL, Vulkan etc.

Extension along any of these axes should not affect the other axes. This is where Type Erasure comes into play.

A Better Solution: Type Erasure⌗

Some of the readers may have heard of the term “Type Erasure” before but for the sake of completeness, let’s define it here. Firstly, let’s be very clear what “type erasure” is NOT!

  • Type erasure is NOT just a void*;
  • Type erasure is NOT pointer-to-base-class;
  • Type erasure is NOT std::variant; In fact, it is quite the opposite! std::variant is a closed set of types with open set of operations whereas type erasure is an open set of types with closed set of operations.

What is Type Erasure then?⌗

Type erasure is:

  • a templated constructor plus
  • a completely non-virtual interface;
  • a combination of 3 clever design patterns:
    1. External Polymorphism
    2. Bridge Pattern
    3. Prototype Pattern

We will get to these patterns later when they appear in the solution.

Applying Type Erasure to our Problem⌗

Let’s begin with our solution. We will first create geometric primitives for the shapes we need. These will be simple classes with no knowledge of drawing or anything that can be done on them and thus are very independent of each other and don’t know about each other’s existence! Thus, we don’t need to couple them together using a base class.

class Circle {
private:
    double radius;
public:
    Circle(double r) : radius(r) {}
    double getRadius() const { return radius; }
};
class Square {
private:
    double side;
public:
    Square(double s) : side(s) {}
    double getSide() const { return side; }
};

Next, we create two structs as below. First, we create a base class ShapeConcept that defines the interface for the operations we want to perform on the shapes. This class has pure virtual functions for each operation like draw(), serialize() etc. Next, we create a templated derived class ShapeModel that implements the ShapeConcept interface for a specific shape type T. This class stores an object of type T which is one of our shape(Circle, Square, etc.) and implements the operations. What we are doing here is allowing libraries to implement their operations on our geometric primitives using free functions(functions not bound to any class). Why free functions? They grant much more flexibility than other types of functions. So, now changing the library implementation is as simple as changing the include files! If we want to use OpenGL, we include the OpenGL header files! If we want to use Vulkan, we include the Vulkan header files!

struct ShapeConcept {
    virtual ~ShapeConcept() = default;
    virtual void draw(/* ... */) const = 0;
    virtual void serialize(/* ... */) const = 0;
    // ...
};
template <typename T>
struct ShapeModel : ShapeConcept {
    T object;
    ShapeModel(T obj) : object{std::move(obj)} {}
    void draw(/* ... */) const override {
        // Call the appropriate draw function based on the type of T
        draw(object /*, ... */);
    }
    void serialize(/* ... */) const override {
        // Call the appropriate serialize function based on the type of T
        serialize(object /*, ... */);
    }
};

This is our first design pattern - External Polymorphism. The intent of this design pattern is to make the behvaiour vary independently of the object’s type, without requiring object to participate in the polymorphism. The objects(Circle, Square, etc.) are just dumb data holders while ShapeModel provides the polymorphic behavior by implementing the operations using free functions. This reduces us the cost of double indirections and also frees the two axes of extension from each other. Now, we can add new shapes without affecting the operations and vice-versa. Let’s see how we can use these classes:

int main() {
    std::vector<std::unique_ptr<ShapeConcept>> shapes;
    shapes.push_back(std::make_unique<ShapeModel<Circle>>(Circle{5.0}));
    shapes.push_back(std::make_unique<ShapeModel<Square>>(Square{4.0}));
    for (const auto& shape : shapes) {
        shape->draw(/* ... */);
    }
    return 0;
}

Even after this solution, we still have a lot of manual small allocations and a lot of play with pointers. So, let’s just wrap this all in a single class and make it manage the memory for us. Why wrap? Because we want to provide a clean interface to the user and hide the implementation details.

class Shape {
private:
  struct ShapeConcept {
    virtual ~ShapeConcept() = default;
    virtual void draw(/* ... */) const = 0;
    virtual void serialize(/* ... */) const = 0;
    // ...
    };
    template <typename T>
    struct ShapeModel : ShapeConcept {
        T object;
        ShapeModel(T obj) : object(std::move(obj)) {}
        void draw(/* ... */) const override {
            // Call the appropriate draw function based on the type of T
            draw(object /*, ... */);
        }
        void serialize(/* ... */) const override {
            // Call the appropriate serialize function based on the type of T
            serialize(object /*, ... */);
        }
    };
    friend void draw(const Shape& shape /*, ... */) {
        shape.shapePtr->draw(/* ... */);
    }
    friend void serialize(const Shape& shape /*, ... */) {
        shape.shapePtr->serialize(/* ... */);
    }
    std::unique_ptr<ShapeConcept> shapePtr;
public:
    template <typename T>
    Shape(T obj) : shapePtr{ShapeModel<T>{std::move(obj)}} {}
};

The templated constructor here allows the Shape class to accept any shape type and create the appropriate ShapeModel for it, store it and then just forget about it. The user of the Shape class does not need to worry about the memory management or the details of the shape type.

Structurally, this is our second design pattern - Bridge Pattern. The Bridge Pattern is a structural design pattern that decouples an abstraction from its implementation so that the two can vary independently. In this case, the Shape class is the abstraction and the ShapeConcept is the implementor interface and ShapeModel<T> classes are the concrete implementations. This allows abstraction (Shape) and implementations (ShapeModel<T>) to vary independently. New concrete types can be supported without modifying Shape, and the changes to Shape do not affect the concrete types.

Notice, we also have friend functions draw() and serialize() that call the corresponding methods on the ShapeConcept. This allows us to call these functions on the Shape class without exposing the implementation details.

Finally, to make Shape truly act like a value type, we need to implement copy and move semantics. Luckily, we don’t need to do much for the special member functions for move and can default them. However, the case for copy is a bit tricky. How do we copy something without knowing its type? Let’s create a clone() method in the ShapeConcept that returns a std::unique_ptr<ShapeConcept>.

class Shape {
private:
    struct ShapeConcept {
        virtual ~ShapeConcept() = default;
        virtual std::unique_ptr<ShapeConcept> clone() const = 0;
        virtual void draw(/* ... */) const = 0;
        virtual void serialize(/* ... */) const = 0;
        virtual std::unique_ptr<ShapeConcept> clone() const = 0;
    };
    template <typename T>
    struct ShapeModel : ShapeConcept {
        T object;
        ShapeModel(T obj) : object(std::move(obj)) {}
        void draw(/* ... */) const override {
            draw(object /*, ... */);
        }
        void serialize(/* ... */) const override {
            serialize(object /*, ... */);
        }
        std::unique_ptr<ShapeConcept> clone() const override {
            return std::make_unique<ShapeModel<T>>(*this);
        }
    };
    //...
};

This is our third design pattern - Prototype Pattern. The Prototype Pattern is a creational design pattern that allows cloning of objects without knowing their concrete types. Here, the clone() method in the ShapeConcept allows us to create a copy of the object without knowing its type. Now, we can implement the copy constructor and copy assignment operator for the Shape class quite easily. Let’s see the usage of the final Shape class:

int main() {
    std::vector<Shape> shapes;
    shapes.emplace_back(Circle{5.0});
    shapes.emplace_back(Square{4.0});
    for (const auto& shape : shapes) {
        draw(shape /*, ... */);
    }
    return 0;
}

Thus, we have successfully designed a system that can store different shapes in a single container and call their draw() methods without knowing the implementation details, created opportunities for easy extension of functionalities without increasing the depth of class hierarchies and avoided code duplication - all while avoiding the drawbacks of inheritance and virtual functions!

A safer templated constructor⌗

One issue with the above implementation is that the templated constructor can accept any type, even those that do not have the required operations like draw() and serialize(). This can lead to compilation errors that are hard to understand. To avoid this, we can use concepts to constrain the types that can be passed to the templated constructor. Let’s define a concept Drawable that checks if a type has the required operations. Similarly, we can define a concept Serializable for the serialize() operation. Finally, we can define a concept Shapelike that combines both Drawable and Serializable. We can then use this concept to constrain the templated constructor of the Shape class.

template <typename T>
concept Drawable = requires(T obj) {
    { draw(obj /*, ... */) } -> std::same_as<void>;
};
template <typename T>
concept Serializable = requires(T obj) {
    { serialize(obj /*, ... */) } -> std::same_as<void>;
};
concept Shapelike = Drawable<T> && Serializable<T>;
class Shape {
private:
    //...
public:
    template <typename T>
                    requires Shapelike<T>
    Shape(T obj) : shapePtr{std::make_unique<ShapeModel<T>>(std::move(obj))} {}
    //...
};

Summary⌗

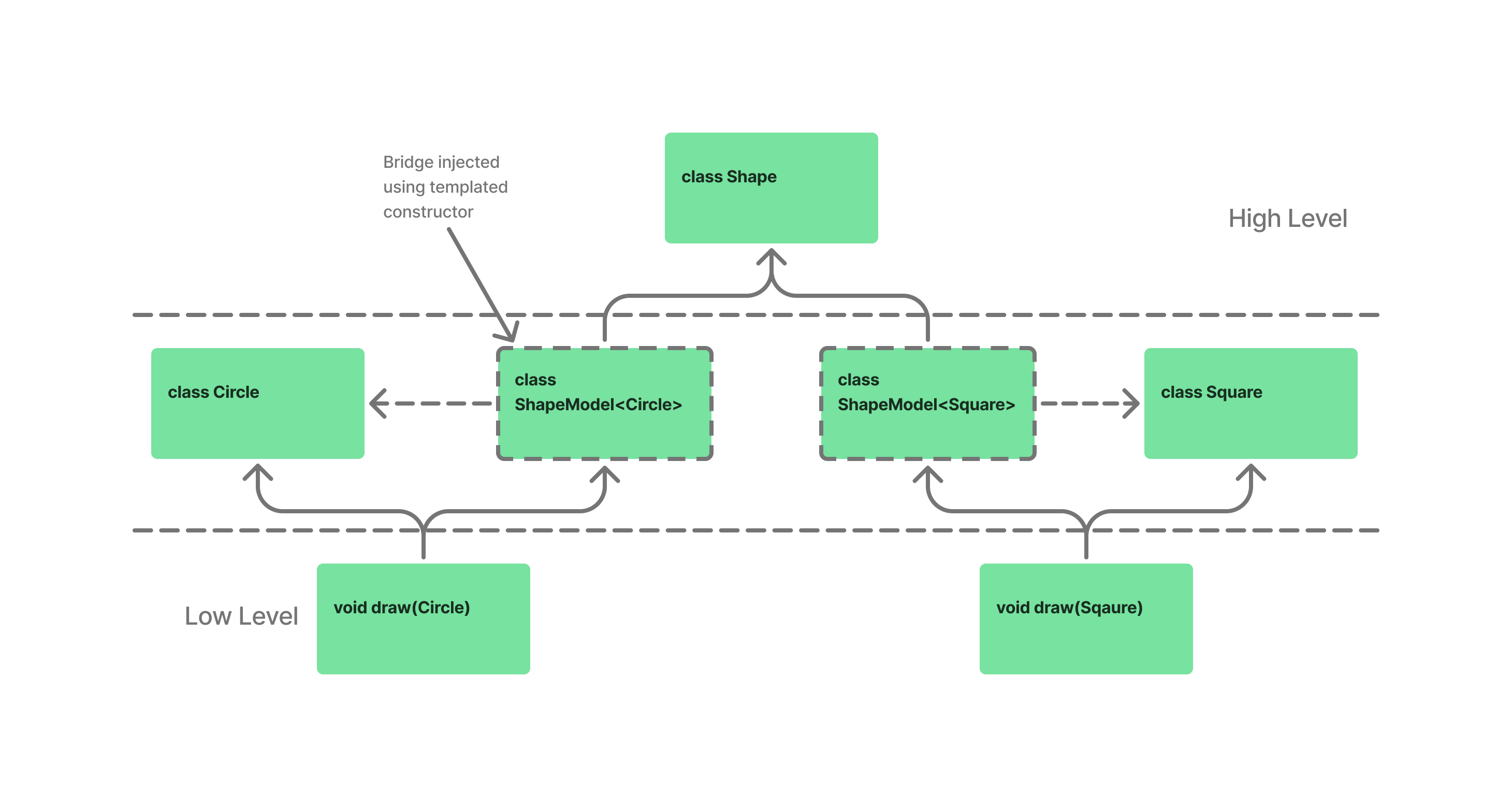

type-erase-sol As we can see in the above architecture diagram, the Shape class acts as a wrapper and abstraction for the different shape types. It contains a pointer to the ShapeConcept which defines the interface for the operations that can be performed on the shapes.

One level below this, we have all the different kinds of shapes like Circle, Square etc. These are totally independent of each other, don’t know about each other’s existence, don’t know what operations can be performed on them and have zero knowledge about the level above them and below them. Now, these can be presented at any level but for the sake of clarity, we put them here.

Now, we need to combine all of these. This happens with draw() implementation. This happens with the help of templated constructor of ShapeModel which acts as a bridge between the two levels and we don’t need to create those classes for each shape as the compiler itself generates them for us. Thus, we have very loose coupling between the different levels.

In this blog, we have concentrated on design perspective and thus I must admit that there are a lot of performance optimizations that can be done to this design. For example, we can use small buffer optimization to avoid heap allocations for small objects. These optimizations are out of the scope of this blog but I would recommend the readers to look into them.
